Product Description
machines to start small business at home QTJ4-18 block making machine concrete
Working video link on youtube:
https://youtu.be/fMtts9WsOEM
https://youtu.be/EFIbKs_BUTw
https://youtu.be/EFIbKs_BUTw
1. QTJ4-18 Hydraulic AutomaticBrick Making Machinery with control systems. It is characterized by high efficiency, reasonable design, compact structure, easy operating and convenient maintenance.
2. For the product forming, the machine takes the hydraulic force as the main and the mechanical force as the auxiliary, through vibrating and pressing, to finish the forming procedure. The formed products are high in compressive strength, good in density, perfect in anti-frost and precise in dimensions.Its four guiding columns are coated with cadmium, having perfect torsional strength and wearing capacity.Its material distributor, using sensor and hydraulic proportional driving technologies, can produce forced centrifugal discharging under the function of swing and arc-breaking mechanism to provide quick and even material distributing, and to increase the productivity.
3. For multi-function use

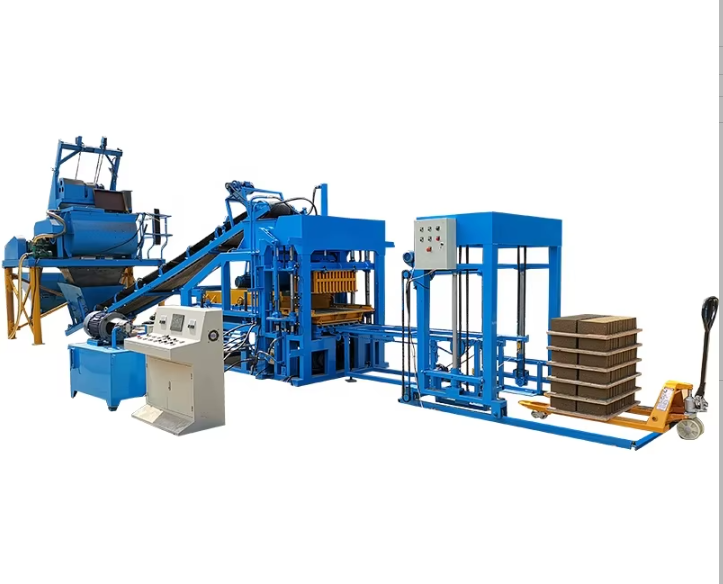

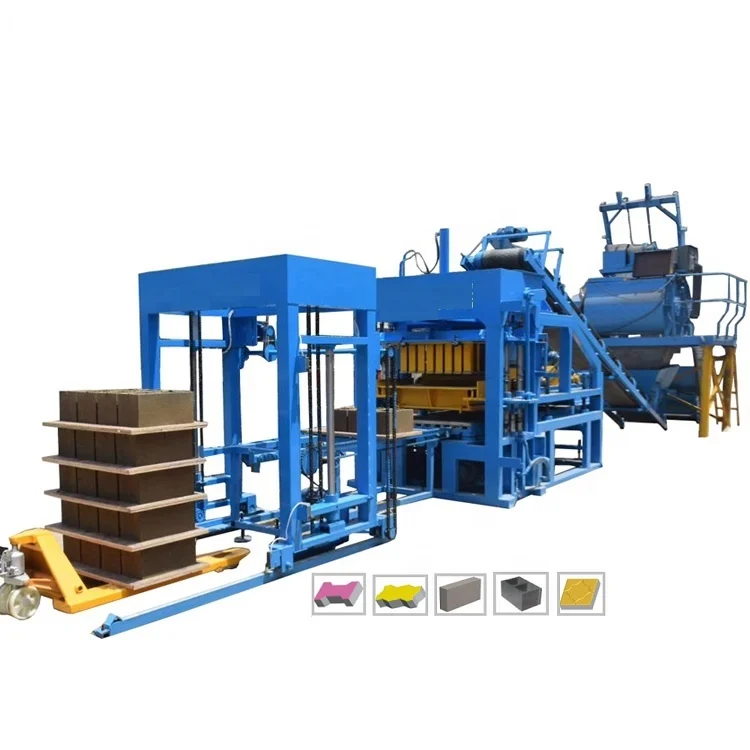

QTJ4-18 Hydraulic full automatic with HY500 pan mixer
It's our production line for QTJ4-18 hydraulic full automatic block making machine. Host machine, Control box, Hydraulic station, 6m belt conveyor, JQ500 pan mixer, Block stacker

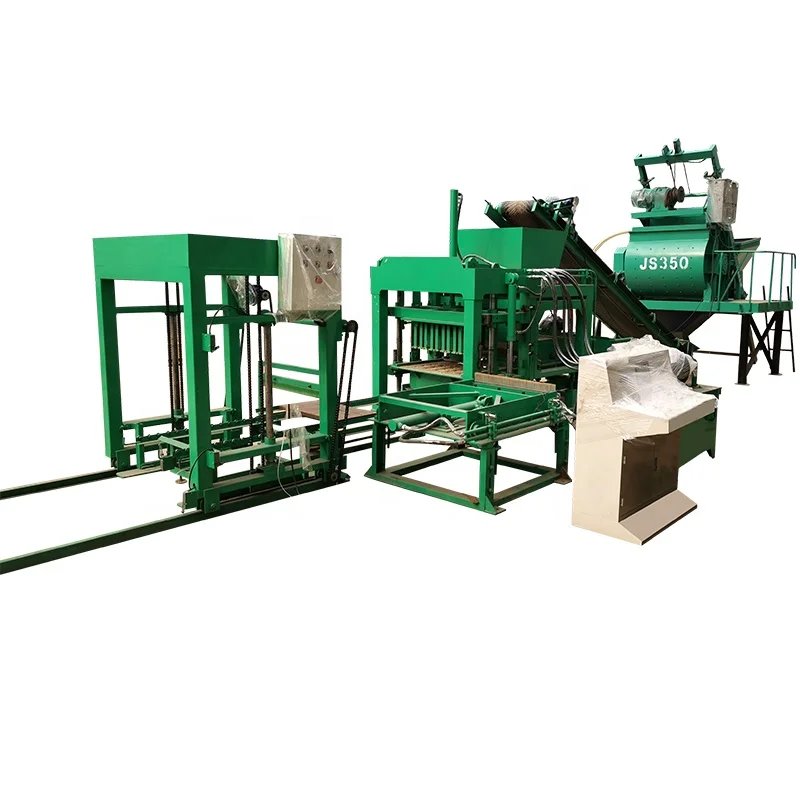

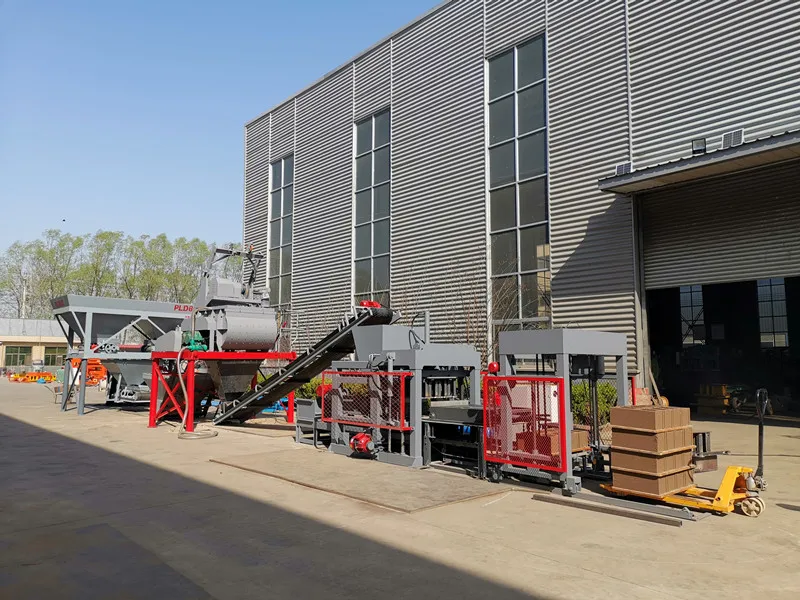

QTJ4-18 Hydraulic full automatic with PLD800/1200 Batching machine and JS500/JDC350 Vertical mixer
This production line is suitable for big block factory.Host machine, Control box, Hydraulic station,
6m belt conveyor, PLD800 Batching machine, JS500 Vertical mixer, Block stacker
6m belt conveyor, PLD800 Batching machine, JS500 Vertical mixer, Block stacker
If you produce color pavers, just add color feeding system.

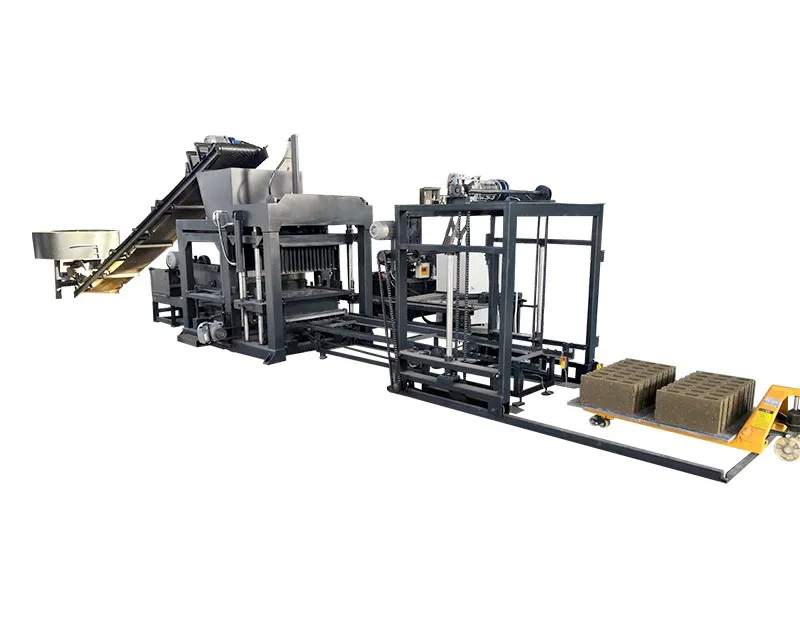

You can also add stacker for this machine
You can also add stacker for this machine
Specification
Overall size |
3680×1900x2400mm |
Forming cycle |
18s |
Vibration frequency |
4500r/min |
Pallet size |
880x550x20mm |
Electric source |
220v/380/440v/50hz or 60hz as request |
Power |
22.5kw |
Total weight |
4200kgs |
Shaping Method |
hydraulic press+ vibration |
Hydraulic pressure |
15-22mpa |

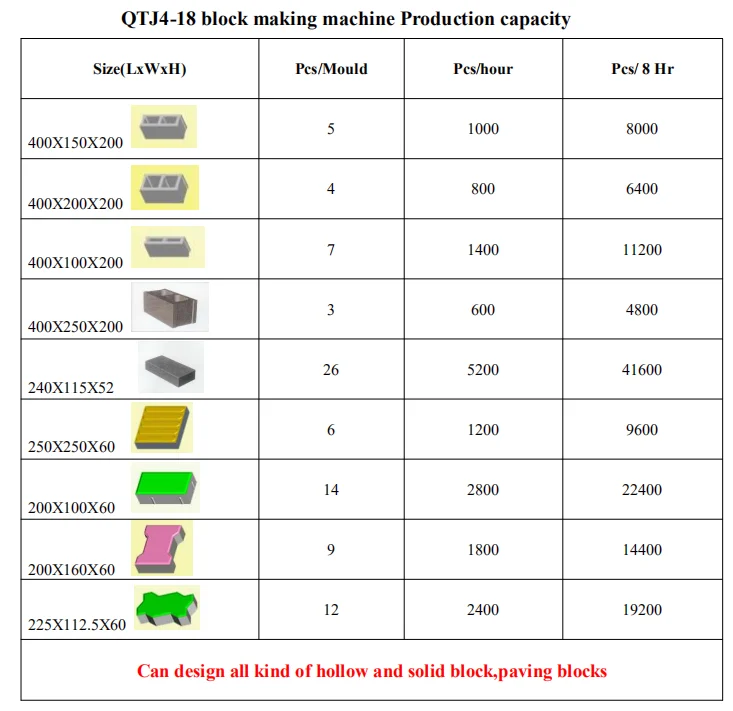

Production Capacity
Blocks
Details Images
Machine Parts

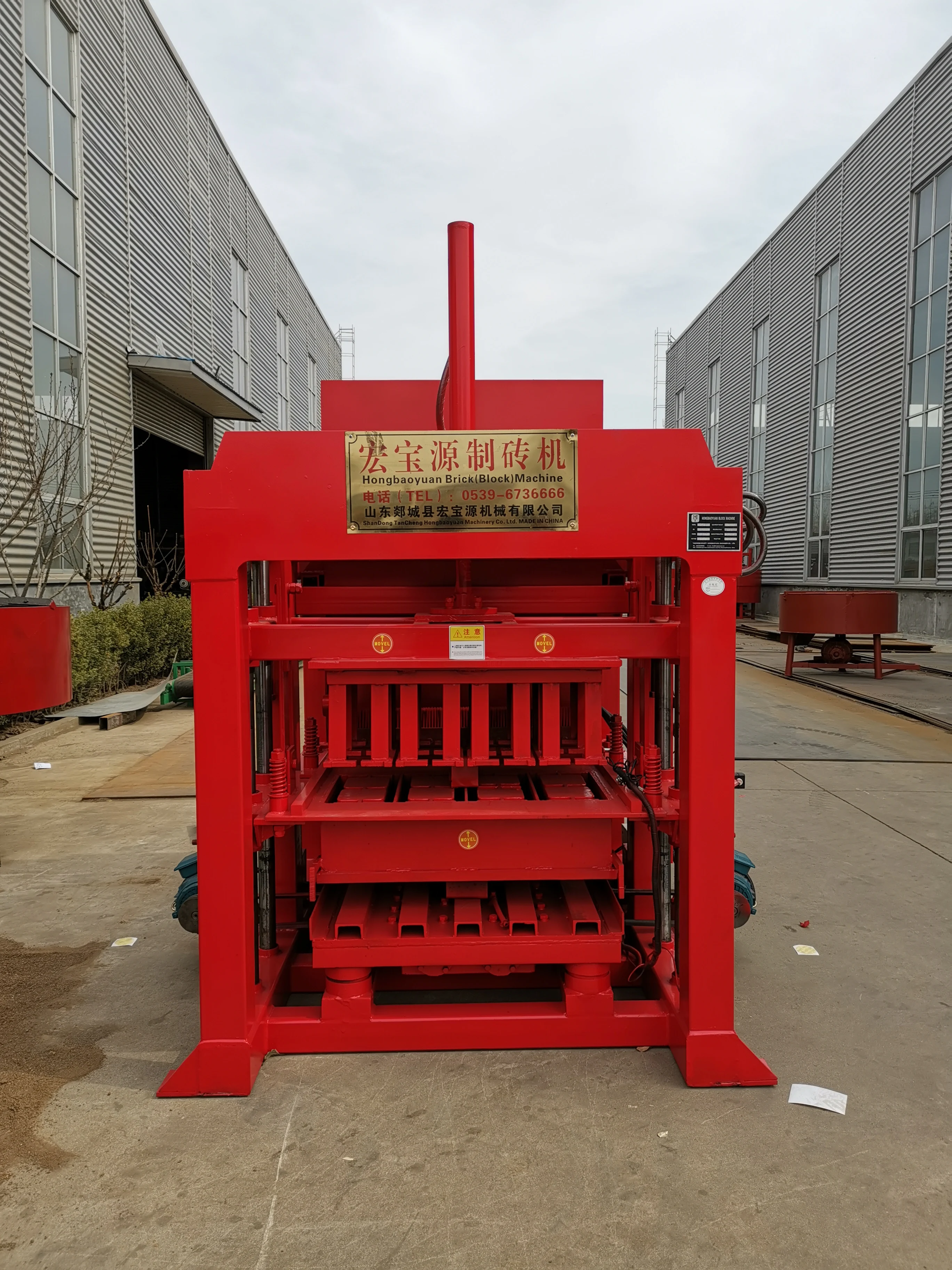

Name: QTJ 4-18 block making machine
Brand: HBY
Original: China

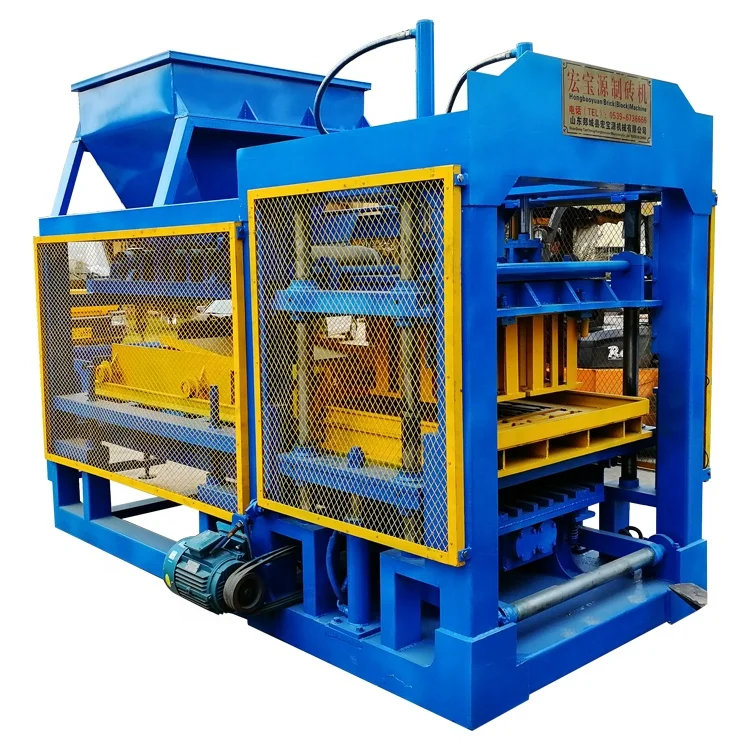

QTJ4-18 is one type of hydraulic full automatic block making machine of our factory. Very easy to installation and operation.
Brand: HBY
Original: China
QTJ4-18 is one type of hydraulic full automatic block making machine of our factory. Very easy to installation and operation.
Hydraulic station
Control box and hydraulic station
JQ500 pan mixer
Name: JQ 500 Mixer
Brand: HBY
Original: China
JQ500 concrete mixer can can work independently, also can be composed the concrete mixing plant with other matched equipment., and
it can be Applicable to large, medium and small precast concrete products factory and roads, railways, bridges, water conservancy,
civil construction project, and it can mix dry and hard concrete, plastic concrete, light aggregate concrete and all kind of
mortar, it is one kind of high efficiency, widely used construction machinery. It owns reasonable design ,and its mechanical
accessories used industry standard parts, and its maintenance is much convenient.
Brand: HBY
Original: China
JQ500 concrete mixer can can work independently, also can be composed the concrete mixing plant with other matched equipment., and
it can be Applicable to large, medium and small precast concrete products factory and roads, railways, bridges, water conservancy,
civil construction project, and it can mix dry and hard concrete, plastic concrete, light aggregate concrete and all kind of
mortar, it is one kind of high efficiency, widely used construction machinery. It owns reasonable design ,and its mechanical
accessories used industry standard parts, and its maintenance is much convenient.
Conveyor belt
Name: Conveyor belt
Brand: HBY
Original: China
3m/4m/5m/6m/7m belts, carry the material to the feeder.
Brand: HBY
Original: China
3m/4m/5m/6m/7m belts, carry the material to the feeder.
Auto stacker
Name: Auto stacker
Brand: HBY
Original: China
Automatic Brick Collecting stacker machine System can Collect and stack up produced concrete bricks.meanwhile,it can clean and
stack up the pallets. Save 5-6 persons,improve production efficiency.
Brand: HBY
Original: China
Automatic Brick Collecting stacker machine System can Collect and stack up produced concrete bricks.meanwhile,it can clean and
stack up the pallets. Save 5-6 persons,improve production efficiency.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Packing & Delivery
Recommend Products

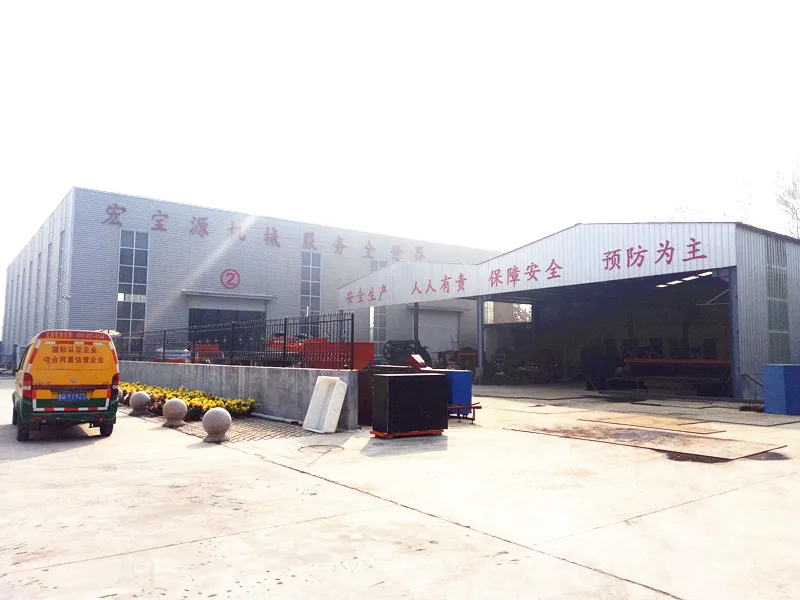

Our Company
