Product Description
HBY2-10 small manufacturing clay interlocking brick machine manufacturers india
whatsapp:0086 18306506031
working video:
https://youtu.be/mQoL0z1IooE
https://youtu.be/-H8-_8p3QVM
https://youtu.be/-H8-_8p3QVM

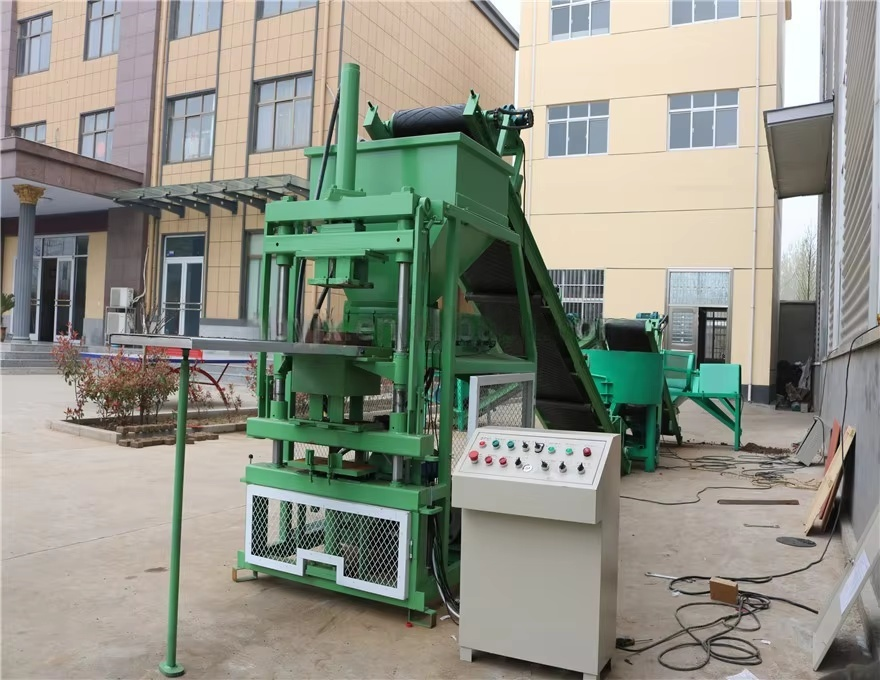

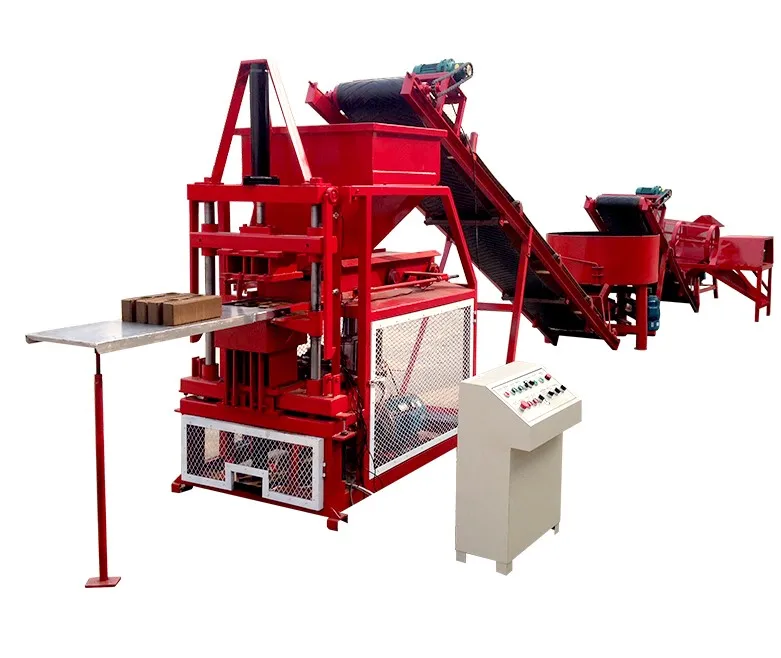

The main feature of HBY2-10 clay brick making machine
1. HBY2-10 semi-automatic hydraulic interlocking manual brick making machine/how to build earth homes is a small hydraulic block machine which can be easily operated by one person.And it has been widely used in African countries.
1. HBY2-10 semi-automatic hydraulic interlocking manual brick making machine/how to build earth homes is a small hydraulic block machine which can be easily operated by one person.And it has been widely used in African countries.
2.The machine uses a electric motor to drag the CBT-E316 gear pump,and thus produces the oil pressure is about 16Mpa to push the hydraulic oil cylinder doing to-and-fro motion The process of shaping and demoulding can be finished in 10
seconds. Additional, the production of this machine is two times more than that of similar foreign manual models and the labor intensity is greatly decreased.
seconds. Additional, the production of this machine is two times more than that of similar foreign manual models and the labor intensity is greatly decreased.
3.By adjusting the screws,the height of the brick can be changed.
4.However the mould of HBY1-15 semi-automatic hydraulic interlocking manual brick making machine/how to build earth homes can not be changed , so you can only make one kind of block with one machine. In oder to meet the needs of customers, we have developed a new type brick making machine , which can make two blocks at a time .Also the mould can be changed so that many kind of blocks can be made with just one machine.
Specification
Overall size |
1600Ã1200Ã2100mm |
Power |
7.5Kw |
Weight |
1300kgs |
Mixer type |
HY350 |
Shaping cycle |
10-12 second |
Voltage |
380V/240V/440V or as request |
Pressure |
19Mpa |
Capacity |
7200PCS/8hours |
Material |
clay with 8~12% cement, water |
Pcs/mould |
2 |

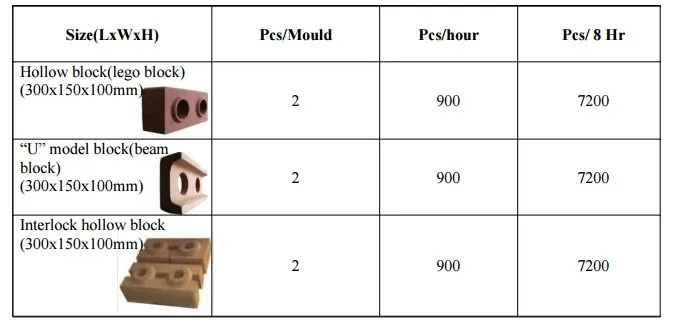

Detailed Capacity
Size(LxWxH) |
Pcs/Mould |
Pcs/Hour |
Pcs/8Hour |
Hollow block(lego brick) 300x150x100mm |
2 |
900 |
7200 |
"U" Block mould 300x150x100mm |
2 |
900 |
7200 |
Interlock hollow block
300x150x100mm
|
2 |
900 |
7200 |
Half brick mould |
4 |
1800 |
14400 |
Detailed Images

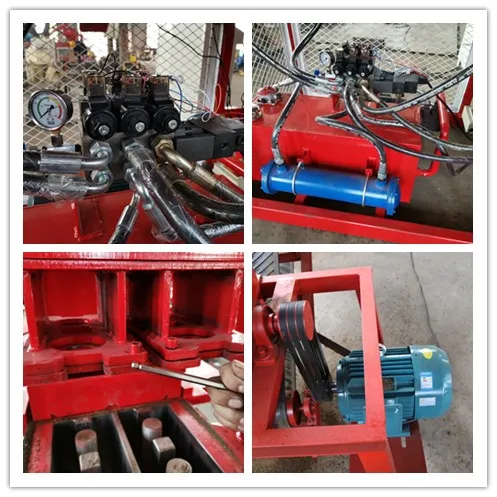

Ectromagnetic valves
Solenoid valve will use YUKEN brand which is the
biggest electromagnetic valve manufacturer in Japan to
assure brick making machine run stably.
biggest electromagnetic valve manufacturer in Japan to
assure brick making machine run stably.

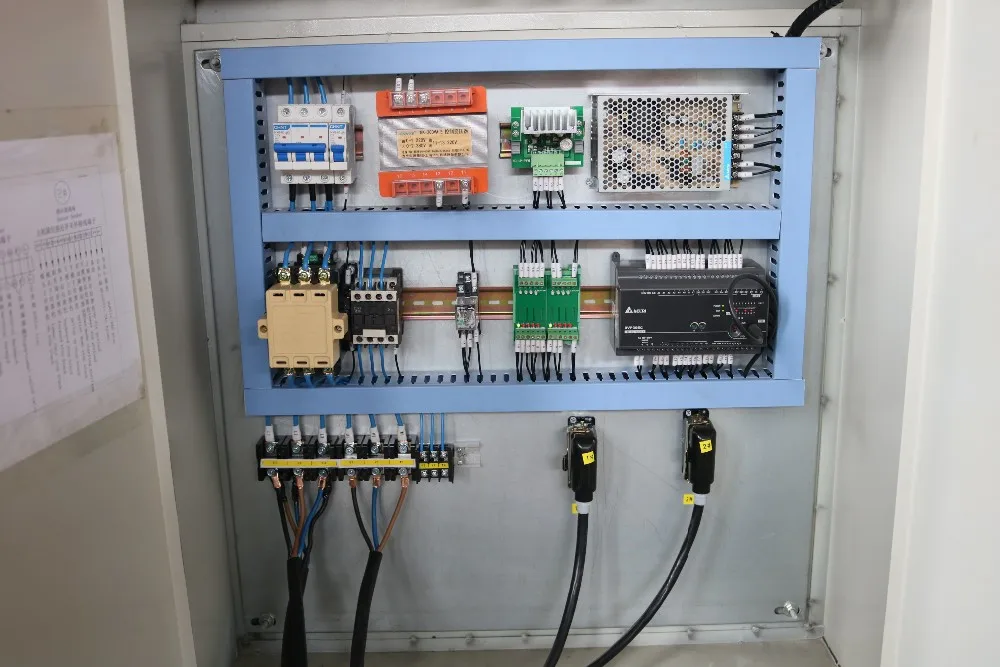

PLC Control
1. Select original Mitsubishi PLC control system and famous brand relay to assure stable and high-efficiency working status of the machine.
2. It is a a functioning and flexible application and has high reliability, strong anti-interference ability.
3. Easy to learn and operate.
2. It is a a functioning and flexible application and has high reliability, strong anti-interference ability.
3. Easy to learn and operate.
Brick mould
Soil mixer is installed in the machine which supply the material in time .All the power is provided by the hydrauliac system
Mixer, belt conveyor, screen machine and soil crusher

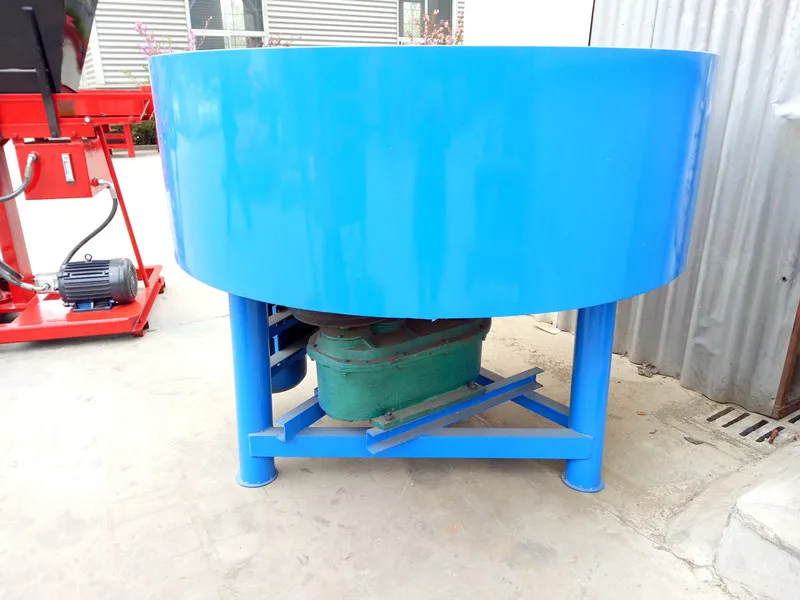

Mixer
Overall Size: 1200*1200*1150mm
Feeding capacity:500L
Discharging volume:350L
Productivity:â¥10m3/h
Motor Power:5.5KW
Total Weight:530KGS
Rated Voltage:Adapt to loacl voltage
Feeding capacity:500L
Discharging volume:350L
Productivity:â¥10m3/h
Motor Power:5.5KW
Total Weight:530KGS
Rated Voltage:Adapt to loacl voltage

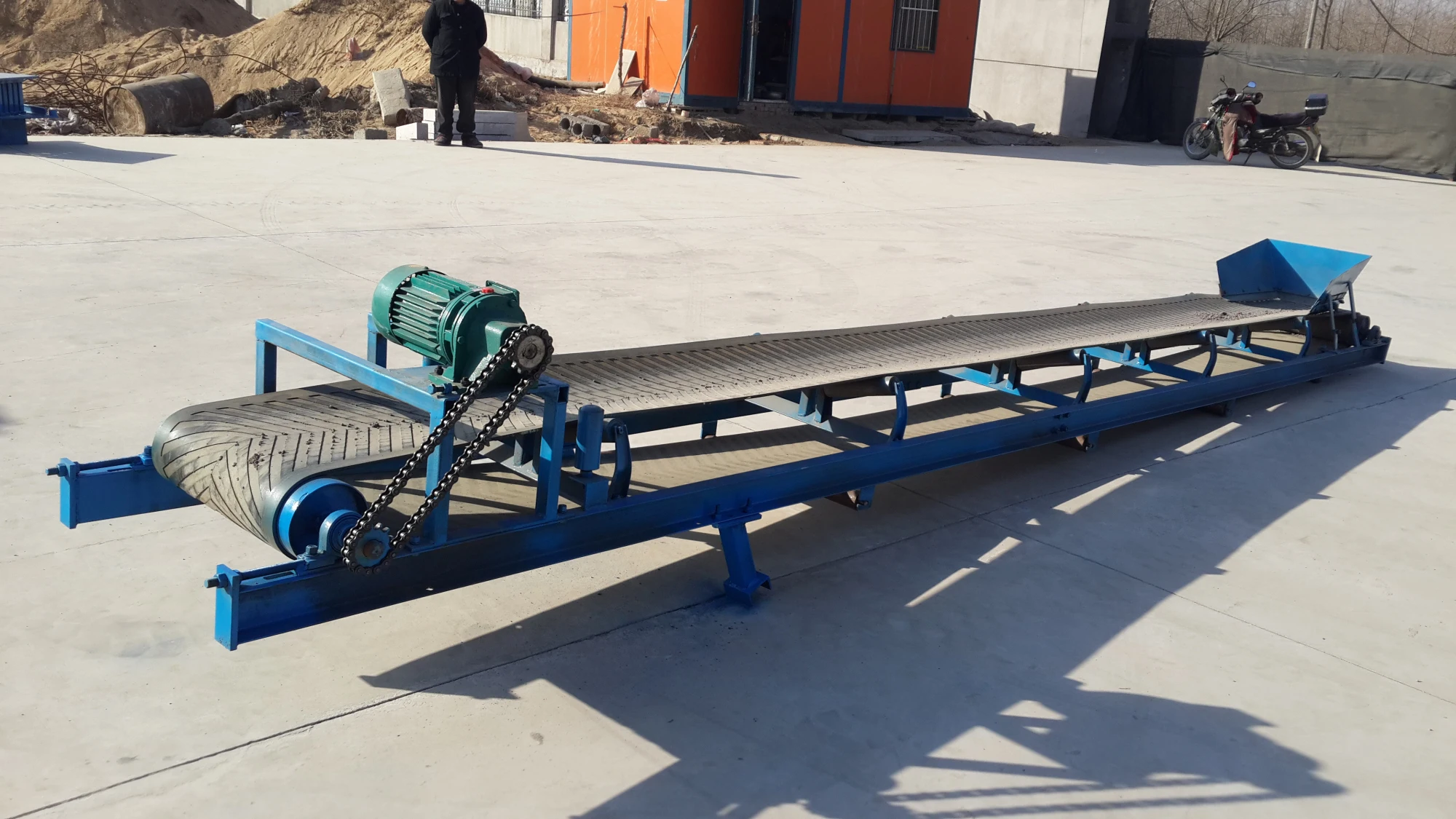

5m Convey Belt
Width:500mm
Thickness:8.6mm
Conveyor Belt Length:4000mm and 6000mm
Motor Power:0.75KW(4000mm) and 1.1KW(6000mm)
Thickness:8.6mm
Conveyor Belt Length:4000mm and 6000mm
Motor Power:0.75KW(4000mm) and 1.1KW(6000mm)

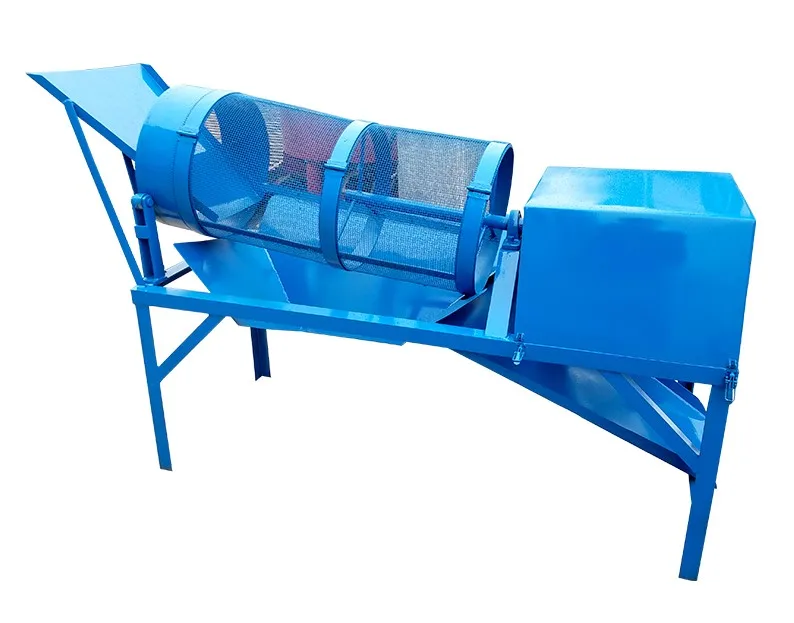

Soil Sieve
Size:dia.500mm
Capacity:480kg/Hour
Rated voltage:Adapt to local voltage
Motor Power:3KW
Total Weigh:350KG
Capacity:480kg/Hour
Rated voltage:Adapt to local voltage
Motor Power:3KW
Total Weigh:350KG

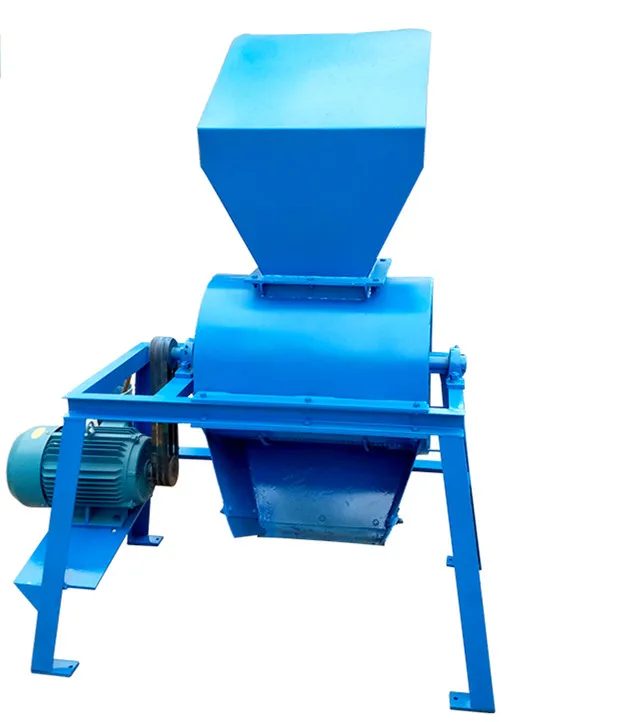

Soil Crusher
Overall size:1100*1100*1400mm
Motor:5.5KW
Capacity:500KGS/Hour
Rated Voltage:Adapt to local voltage
Total Weigh:400KGS
Motor:5.5KW
Capacity:500KGS/Hour
Rated Voltage:Adapt to local voltage
Total Weigh:400KGS

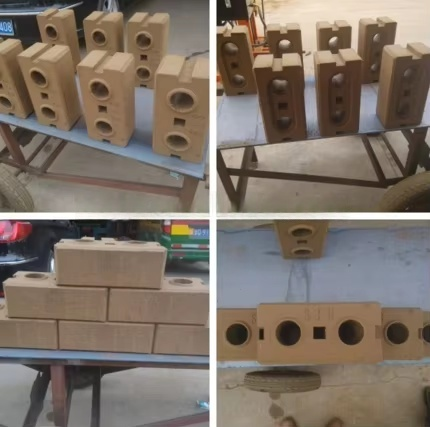

Brick samples
HBY2-10 block machine can produce various interlocking bricks by changing moulds. The following bricks are some common brick types. Also we can customize brick moulds for you on base of your specific requirements.
