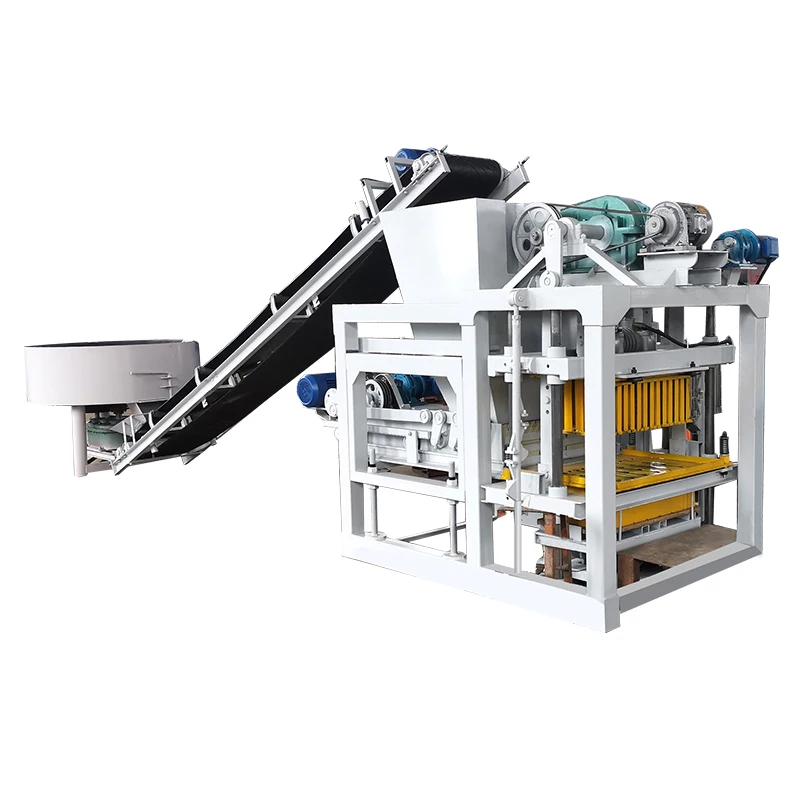

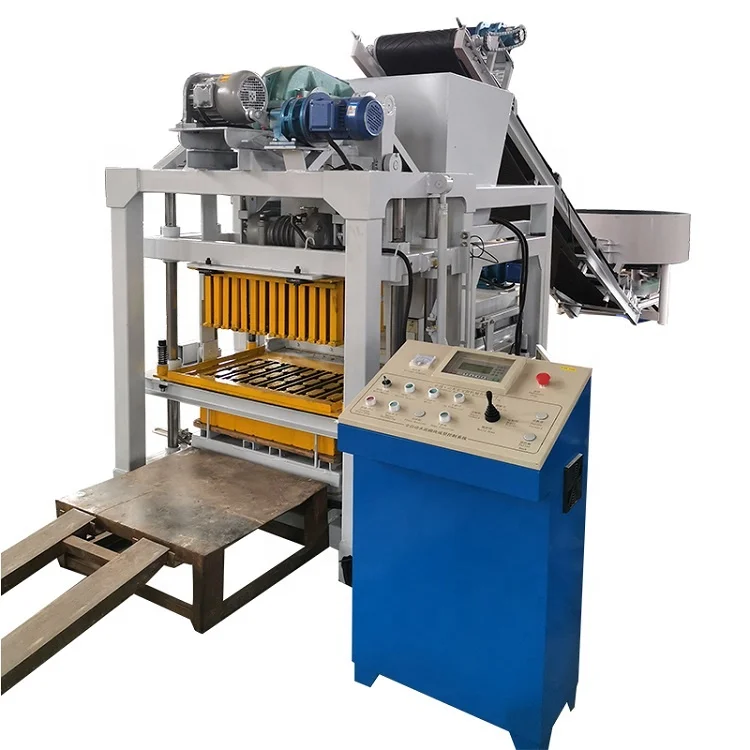

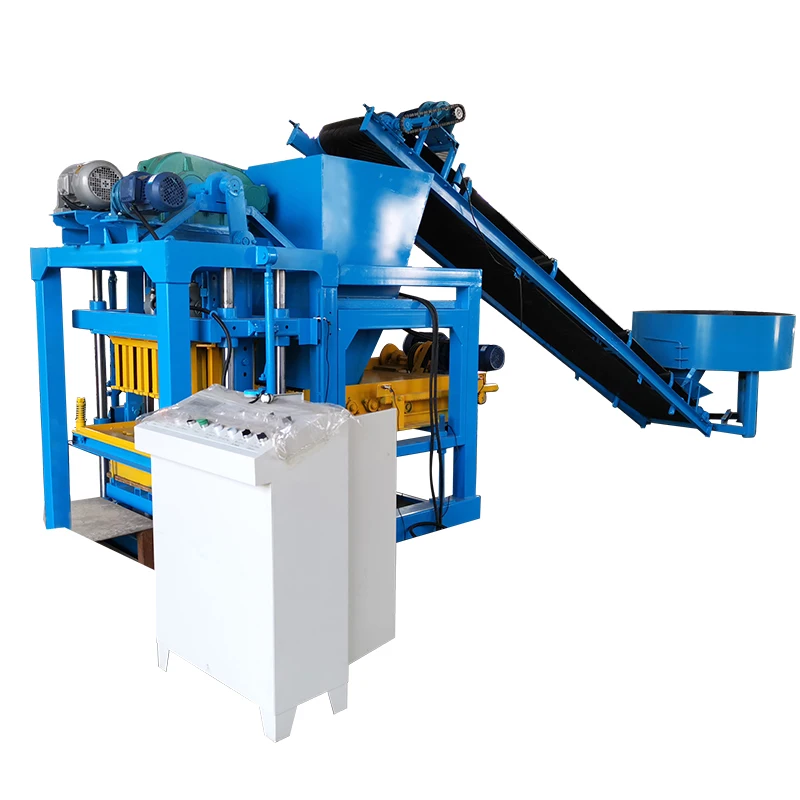

QTJ4-28 Concrete Hollow Block Making Machine

QTJ4-28 Concrete Hollow Block Making Machine

QT4-28 concrete block making machine is our best selling model. it is semi automatic block machine, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. it is designed for small scale block project. It's automatic materials feeding, distributing, brick forming， just need manually use trolley to move the blocks out, so this machine production speed is very fast, and as this machine automatic feeding, so can ensure every time feed same quality material into the mould, so can ensure the block strength is same . This model block machine is very economical, popular in developing countries
QT4-28 block machine with less power, it achieves super strong vibration. It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity

Overview
Recommended Products

Product Description

QTJ4-28 Cylinder Block Brick Making Machinery Interlock Concrete Block Machine details

1.Advantages of QTJ4-28 block making machine:
A:the steel is national standard No.45 steel.the best in our country
B:the welding is the best welding technology,anti-wear, aseismatic,anti Moist
C:the mould is high temperature carburizing heat treatment through 900 Degrees Celsius
D:guide column:four guide column,use overlong guide design,
the surface is chrome-plated,have good anti-wear and high anti-distortion, Long service life .
E.Multi-function:exchange moulds can produce solid bricks,hollow blocks and porous block
can make all kinds of blocks
F.Under The vibration platform has two Super motors to drive the vibration box to vibrate
and the up mould also has one motors to vibrate and so the forming way is vibration,so the
blocks are High strength, the compactness of uniform.

QTJ4-28 Cylinder Block Brick Making Machinery Interlock Concrete Block Machine supplier

QTJ4-28 Cylinder Block Brick Making Machinery Interlock Concrete Block Machine factory

Specification

Dimension	265016502000mm
Vibration force	35.5KN
Moulding period	28s
Pallet size	850x450x20mm
Total Weight	3200kgs
Voltage	380v/440/240v or as inquire
Host machine power	14kw
Mixer model	HY500 Pan mixer

2. HY500 Concrete mixer technical paramaters

Feeding Capacity	600L	Discharging Capacity	500L
Deepth	0.5m	Motor Power	7.5kw
Overall Size	1500L1500W1300Hmm	Diameter	1500mm
Reducer	350	Weight	800kg

3.QTJ4-28 block making machine other information:

1. Area: Workshop area: 50-60m2, all factory area 1000m2, the bigger, the better.
2. Workers: two or three
3. Ratio of raw material: cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is 1:4:5.
4. water consumption per day: 3%-5% of raw material

4.QTJ4-28 block making machine guarantee:

We give our block making machine one year guarantee,during the period we can supply
spares free if they are broken

5. QTJ4-28 block making machine raw material:

6. QTJ4-28 block making machine service:

1.One year warranty for the critical component.
2.After one year, we can help you to maintain the machine and the accessories are provided only on the cost rice.
3.We can help you train the operator and mechanic.
4.We can help you to design the production line, workshop and provide turn-key project

We can send our engineer to install and commissioning the block machine and train your workers.
We have professional after service term and technology term, any question you have you can feel free to contact us,we are 24 hours for your service.

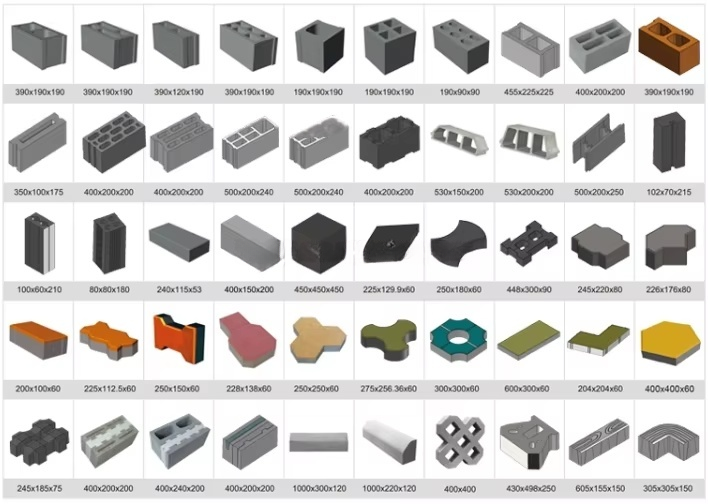

7. QTJ4-28 block making machine product sample:

Production Capacity

QTJ4-28 Theoretical Production capacity
Size (LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X100X200mm	7	800-900	6400-7200
400X150X200mm	5	600-700	4800-5600
400X200X200mm	4	500-600	4000-4800
400X250X200mm	3	350-450	2800-3600
