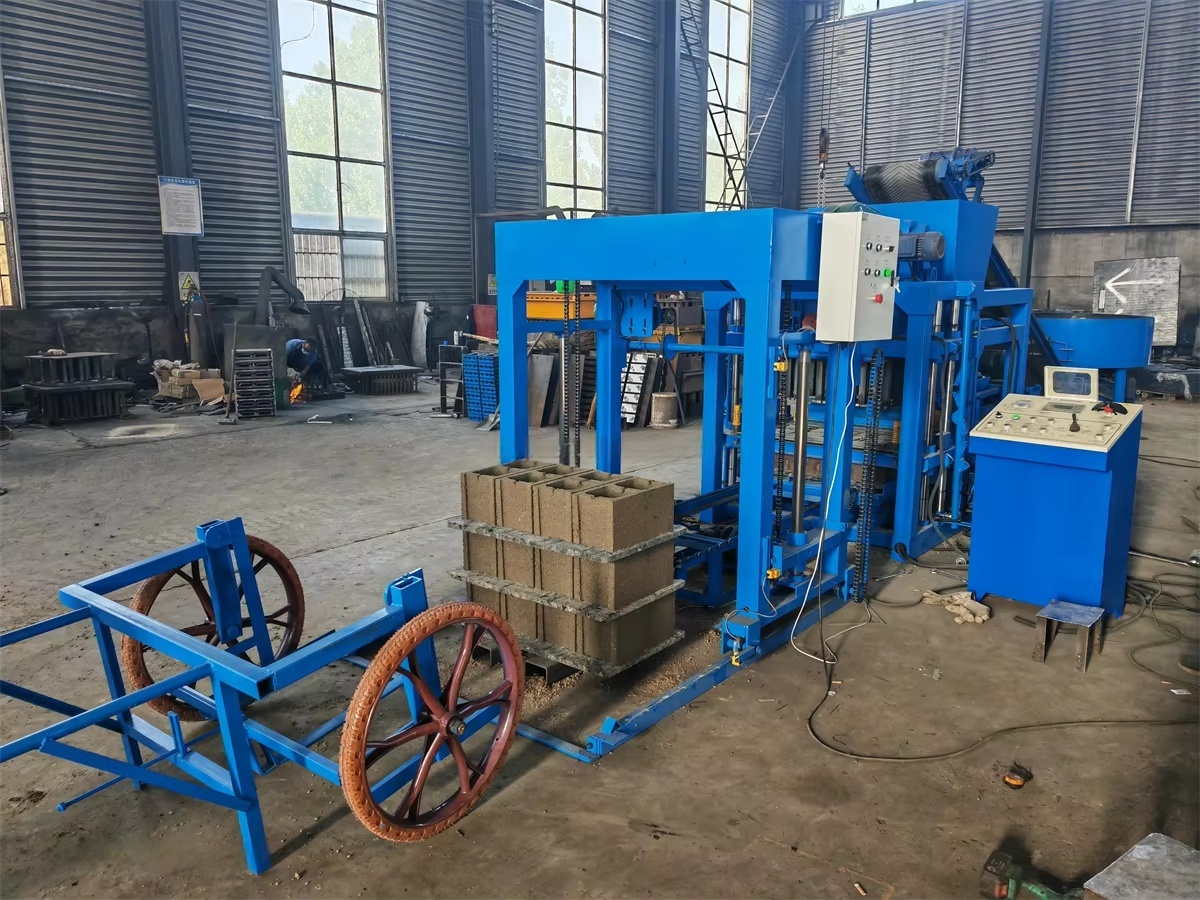

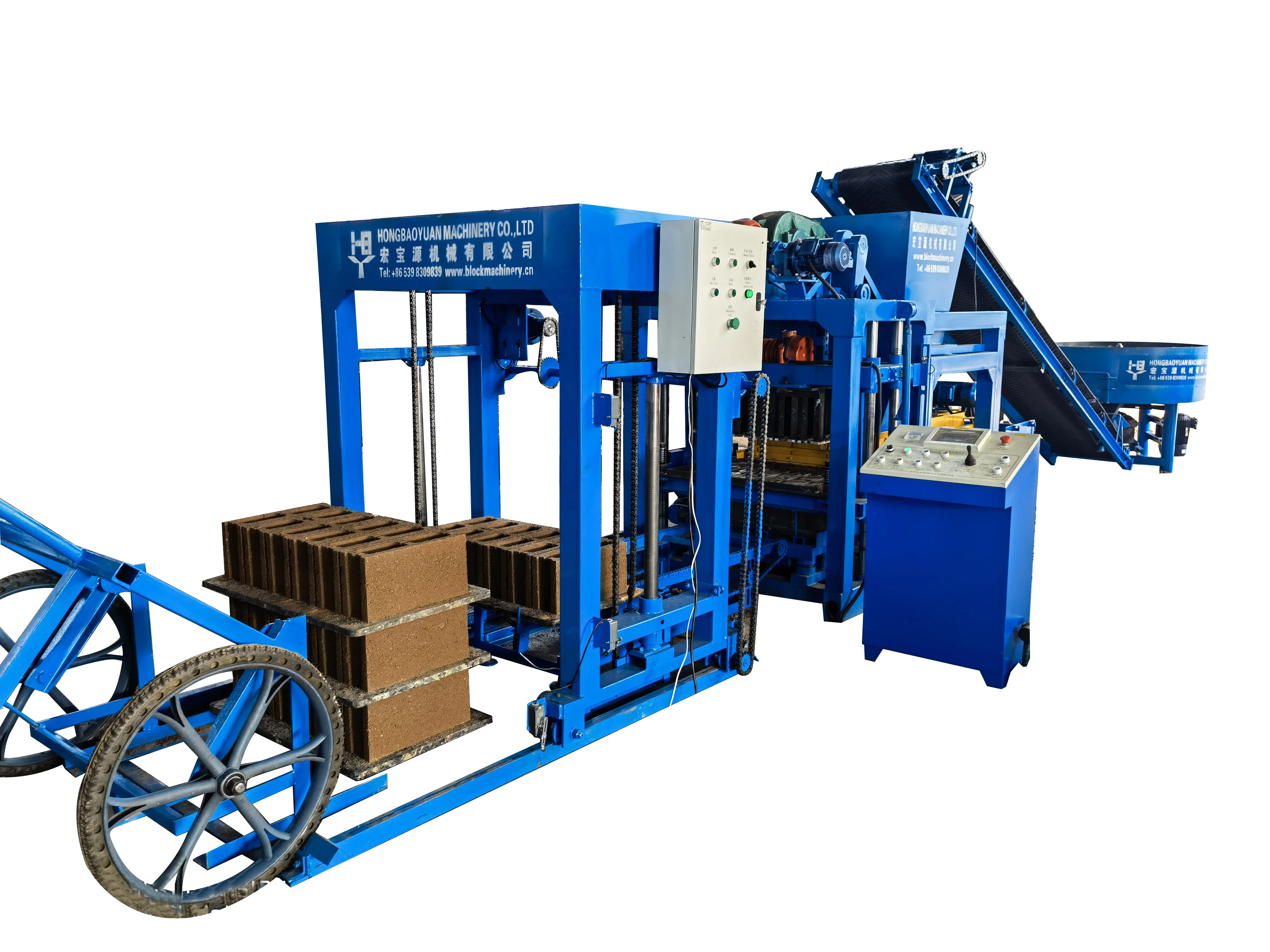

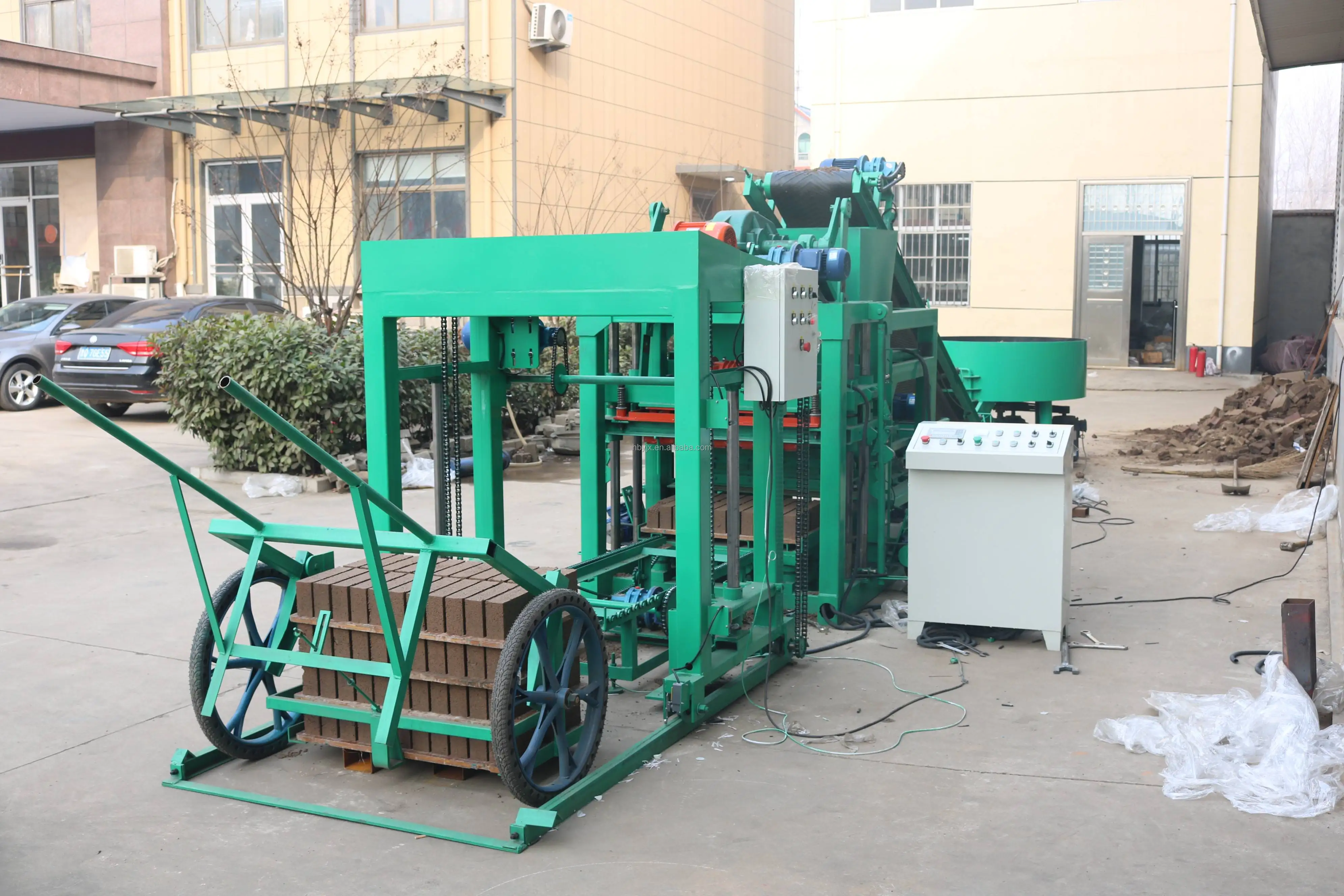

Electric QTJ4-25D Fully Automatic Cement concrete Block Making Machine
QTJ4-25D Block Machine is a new model developed by our company.For this machine,all the advantages of medium and small sized block machines of similar types have be absorbed.It is cheap in price,easy in operating,and durable in use.

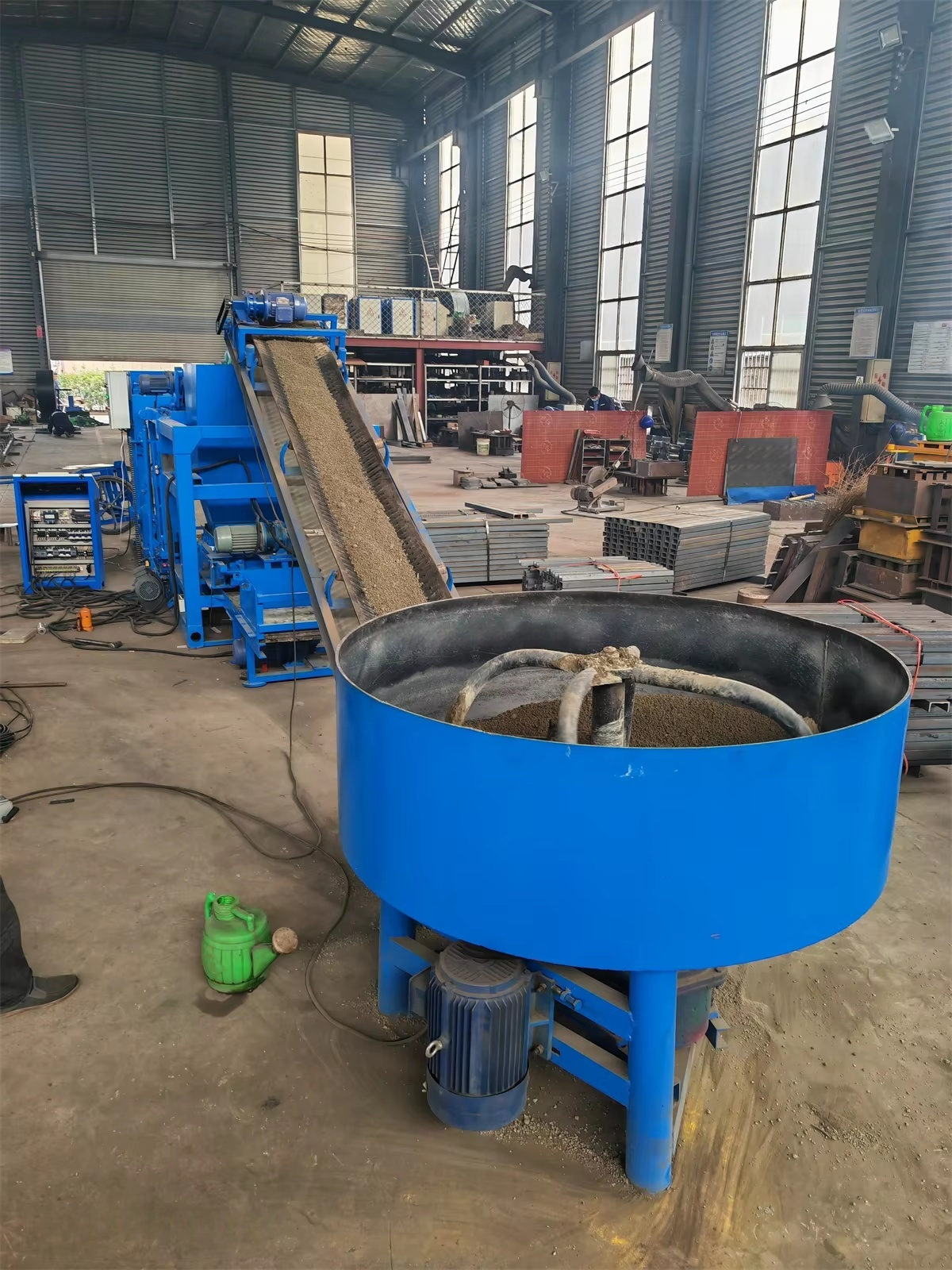

This machine is automatic in material feeding,martial distributing,material scraping and carriage plate placing.This machine is equipped with a power:driven decoupling device and a specialized stacker,which can stack 3—5 layers of the blocks.

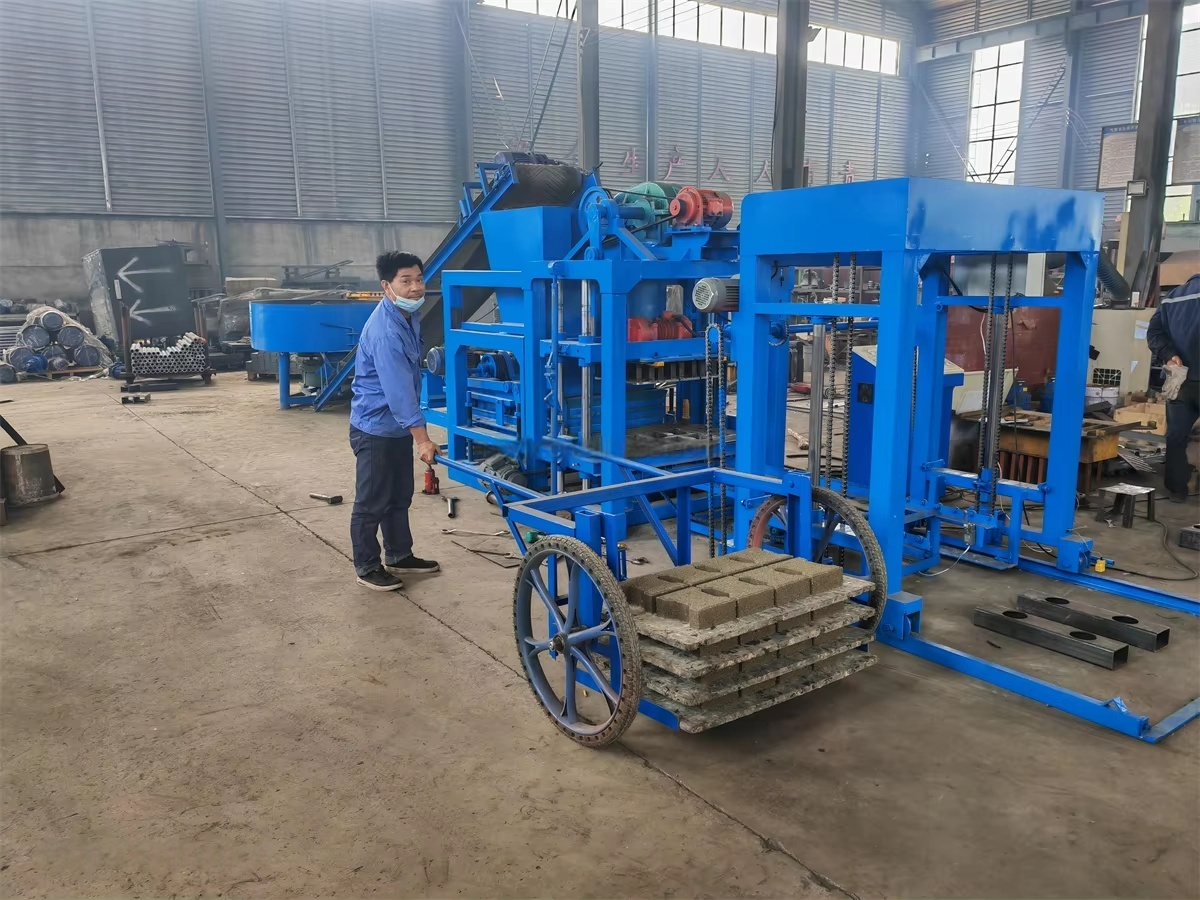

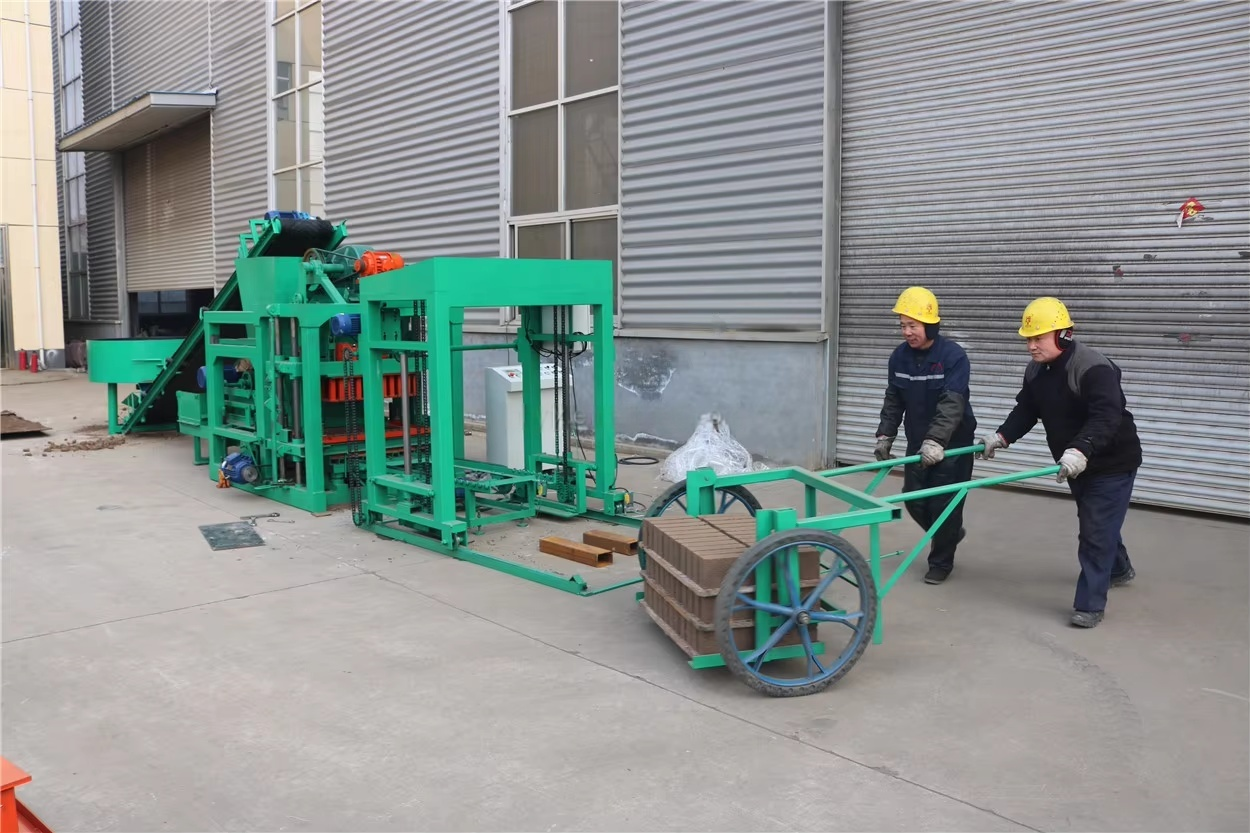

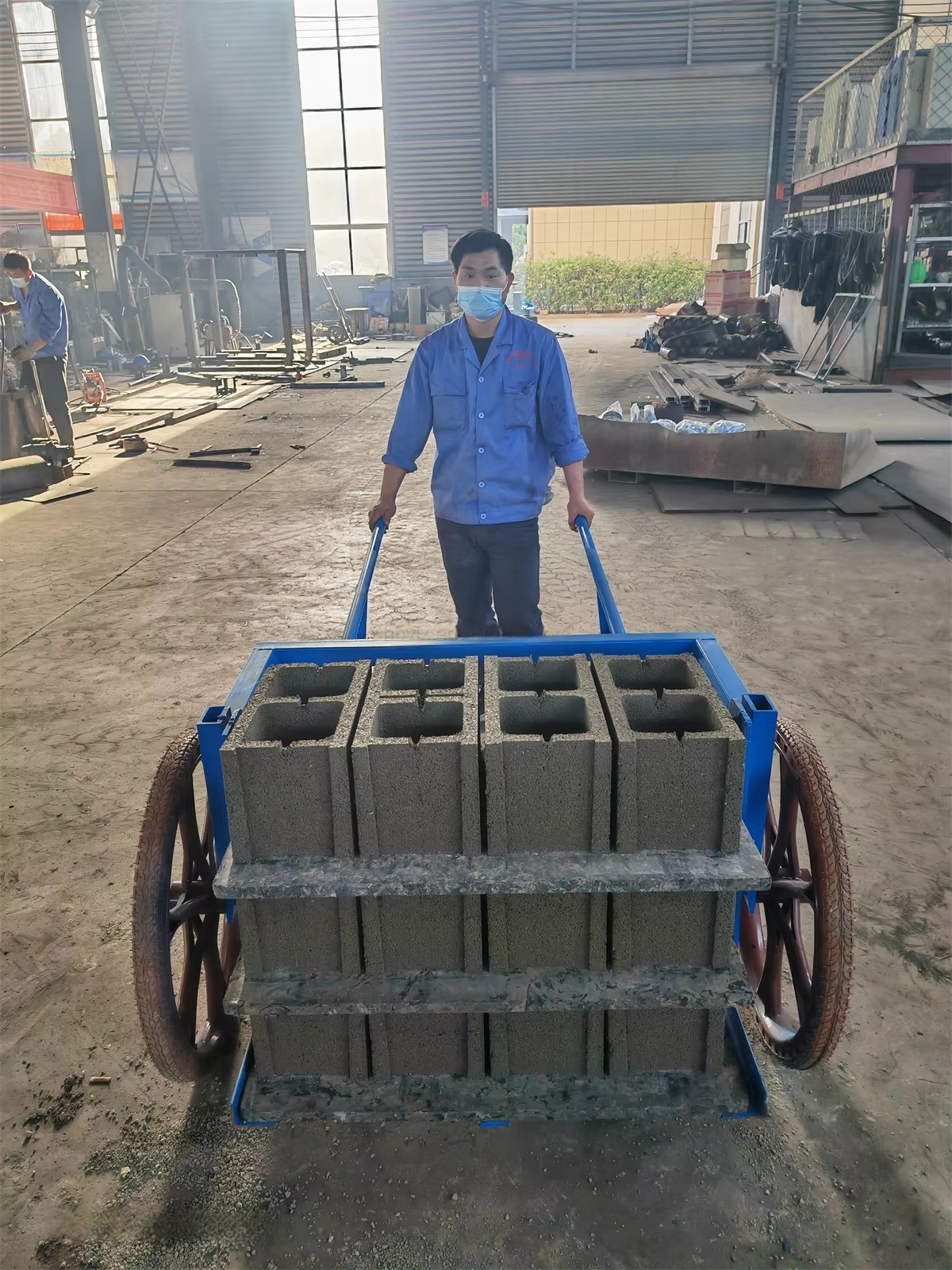

For this machine,there is the specialized carriage cart for block discharging,with which the automatic production with small sized block machine,under the conditions to reduce the labor intensity of workers,can be achieved,and the output of the blocks can be increased substantially.So,it is an ideal alternative of the similar machines.This machine is suitable for the small and medium sized block factories for mass production.
- Overview
- Recommended Products

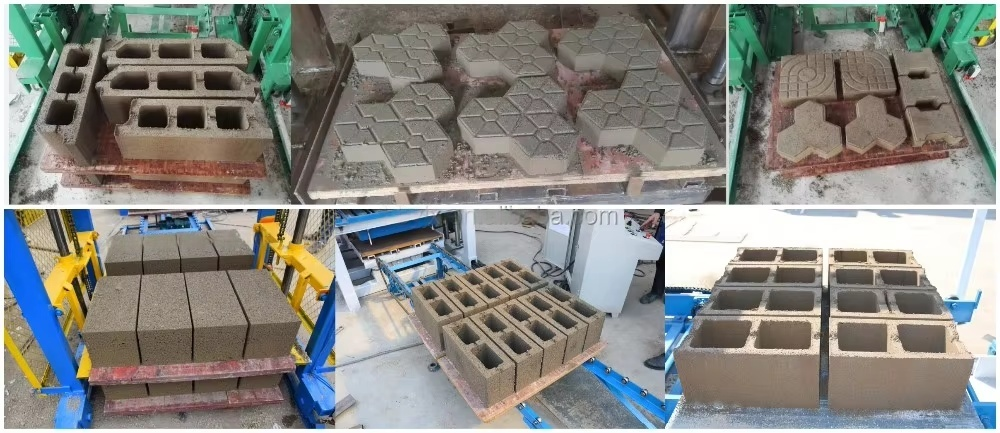

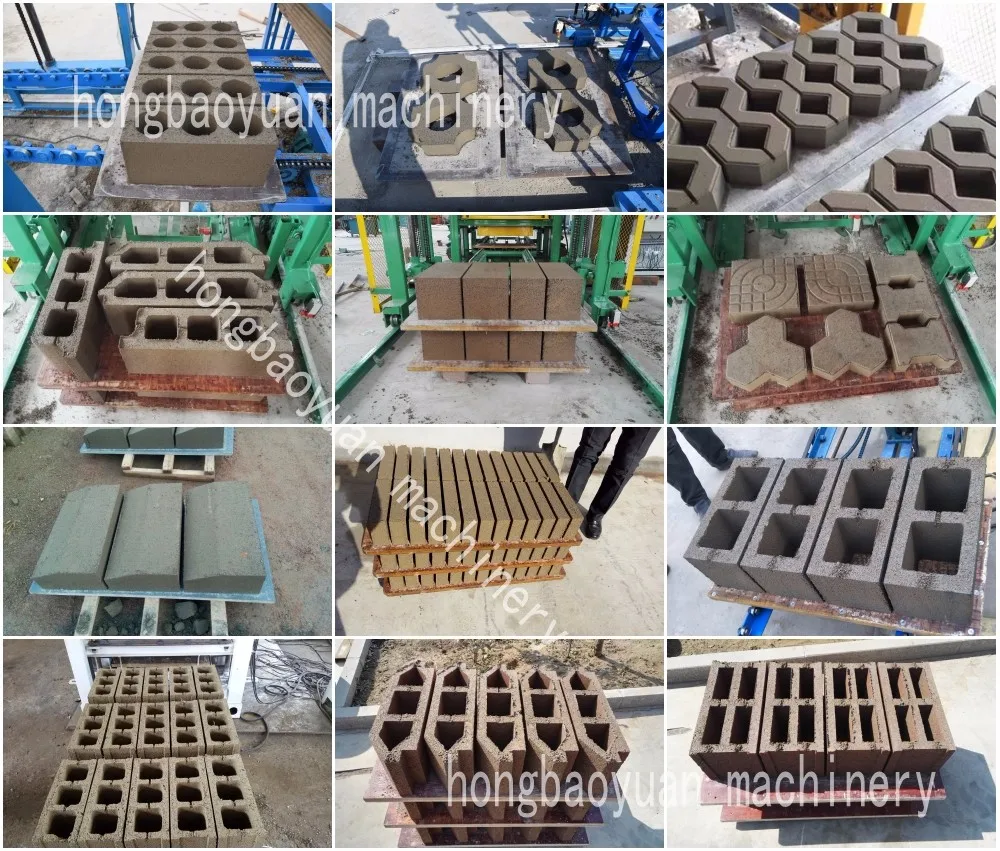

Block size |
Pcs/mould |
Pcs/hour |
Pcs/8hour |
400x200x200mm |
4 |
576 |
4680 |
400x150x200mm |
5 |
720 |
5760 |
400x100x200mm |
7 |
1008 |
8064 |
200x100x60mm |
14 |
2016 |
16128 |
225x112.5x60mm |
12 |
1728 |
13824 |
Name |
QTJ4-25D |
Total Weight |
4.2T |
Forming Cycle |
25-30s |
Size of host Machine |
5000*1650*2200mm |
Size of Carriage Plate |
850*550*30mm |
Daily production capacity for hollow bricks |
4000pcs |
Daily production capacity for standard bricks |
28000pcs |
Daily production capacity for cellular bricks |
10000pcs |
1) Technology advanced:German advanced technology.
2) High quality:the whole machine is adopted high quality steel, and precision welding,the hydraulic system use high-quality components,so it have a longer life and less fault during work.
3) Low investment,high efficiency: this machine have several function features,such as low price,reliable performance, easy to operated,stable,more efficient, high output,low power consumption.
4) Produce high quality bricks: the brick it produced have high density, high strength,accurate dimensional, good appearance,so it can reduce the customer's investment and production costs and give fast and large benefit .
