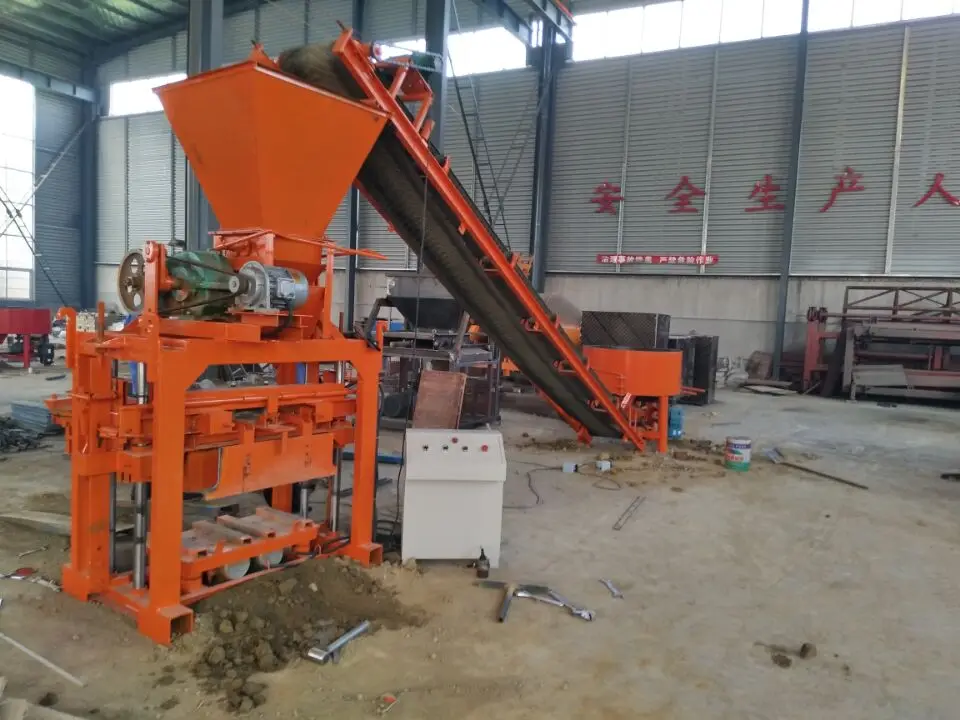

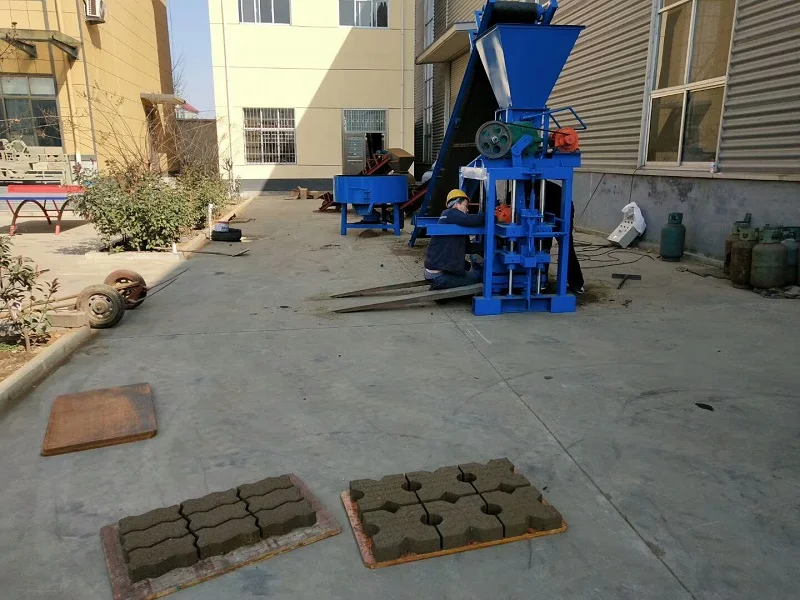

QTJ4-30A Concrete block making machine

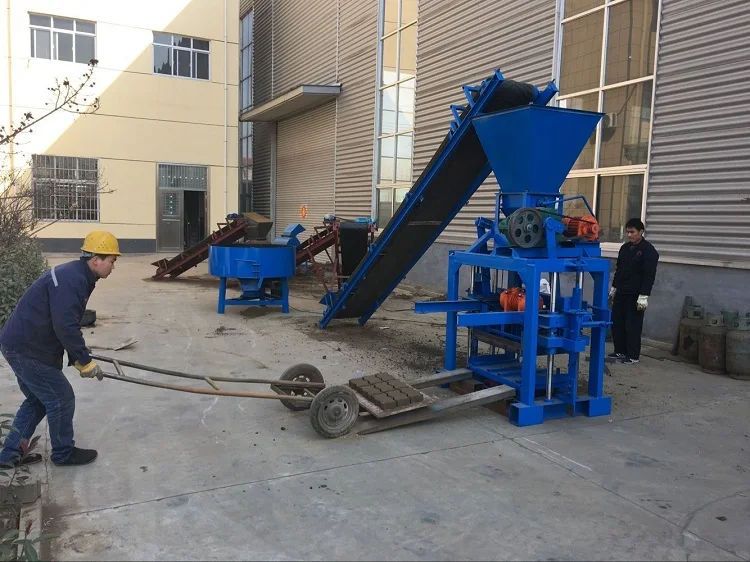

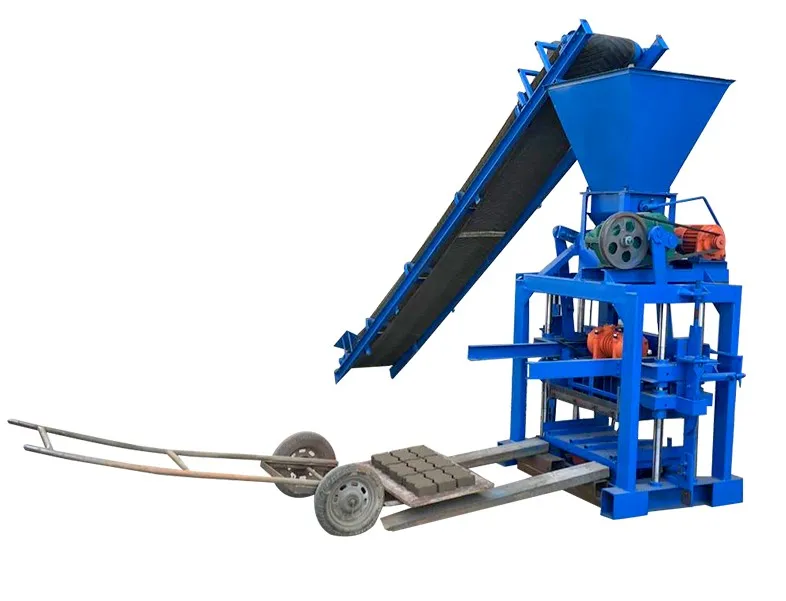

QTJ4-30A is our semi automatic concrete block machine. Equipped with a superior vibration motor, it guarantees high-quality blocks with excellent density and strength. The full line includes QTJ4-30A host block machine, JQ350 MIXER, 6m conveyor belt and the two manual trolley. This machine can produce different types of blocks,such as hollow blocks,solid blocks, pavers,hourdis blocks and curbstones.
- Overview
- Recommended Products
Technical Parameters:
Dimension of host machine |
1360*1650*2660mm |
Forming period |
25-30S |
The size of the pallet |
850×450mmx20mm |
Weight of the machine |
About 1.5T |
Machine power |
11.8KW |
Need workers |
3-4 |
Voltage |
220v-440v 3phase 50/60 hz as request |
Mixer model |
JQ350 mixer |
Vibration Frequency |
Max.4200r/m |
Color |
customized |
Production Capacity:
No. |
Size(L*W*H) |
Block photo |
Pcs/mould |
Pcs/hr |
Pcs/8hr |
01 |
8 inch hollow block 400*200*200mm |
|
4 |
480 |
3840 |
02 |
4 inch hollow block 400*100*200mm |
|
7 |
840 |
6720 |
03 |
6 inch hollow block 400*150*200mm |
|
5 |
600 |
4800 |
04 |
Soild bricks 240*115*52mm |
|
26 |
3120 |
24960 |
05 |

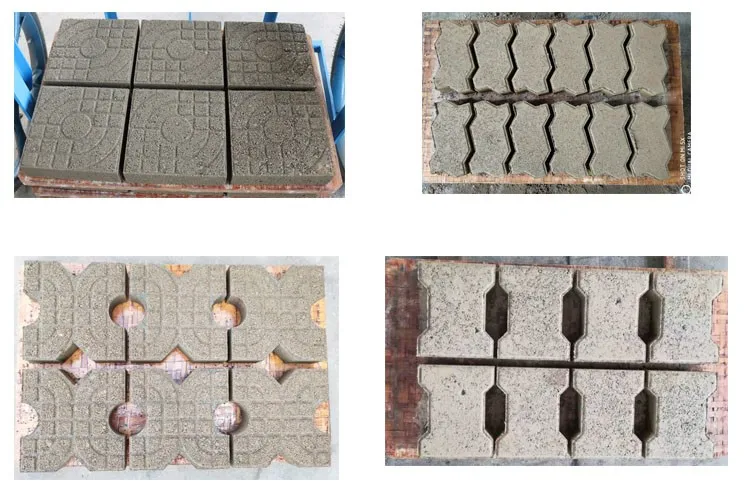

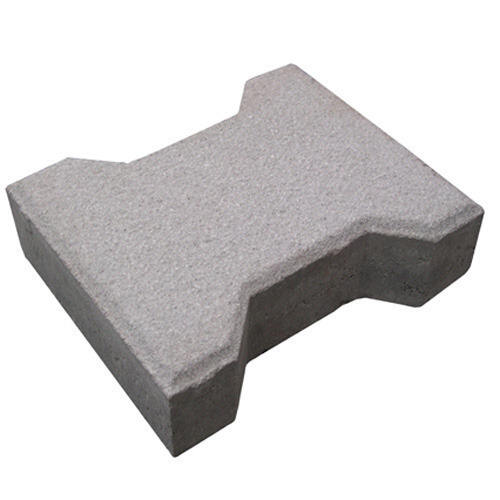

Paver 200*160*60mm |
|
9 |
1080 |
8640 |
06 |

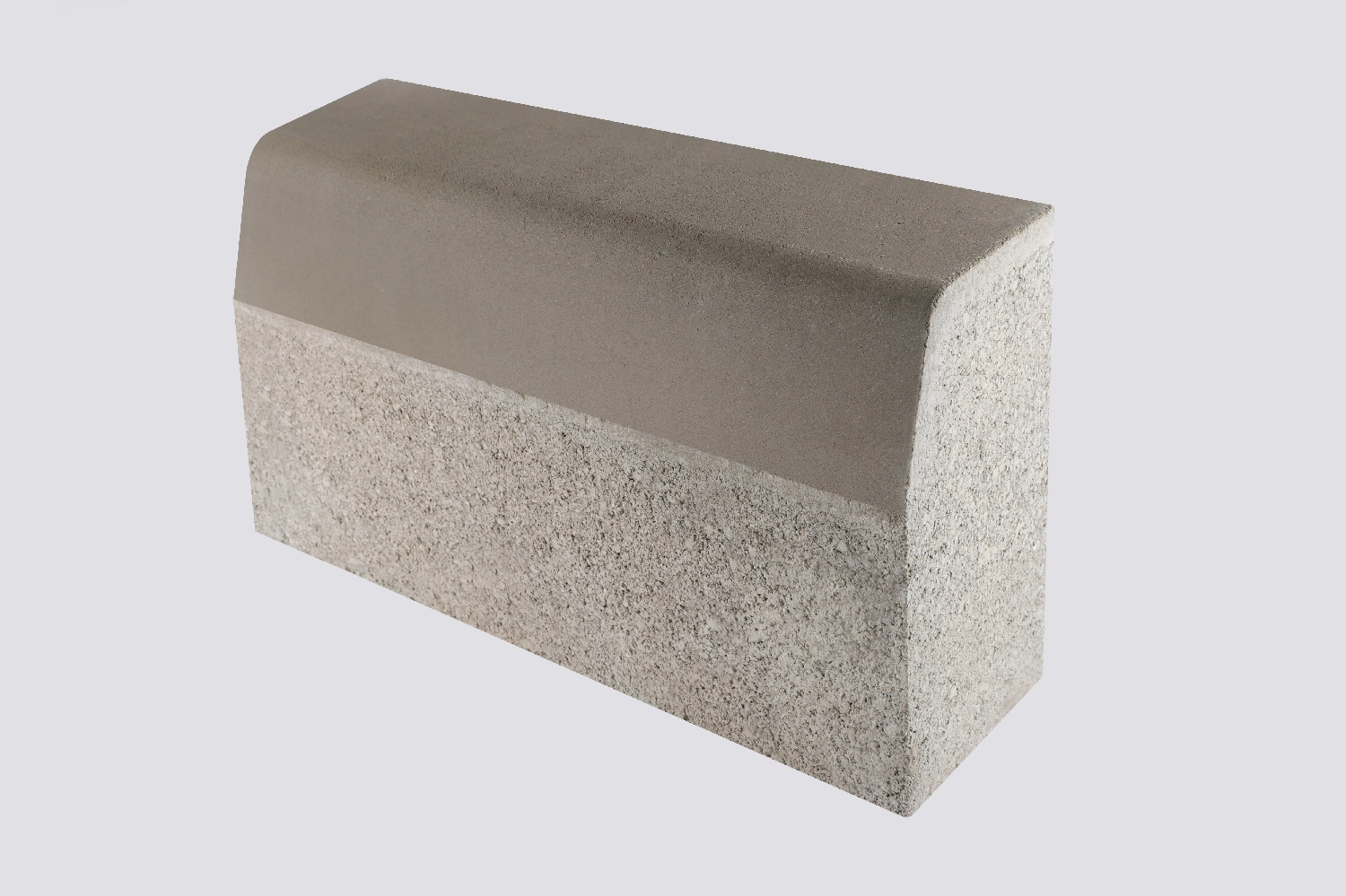

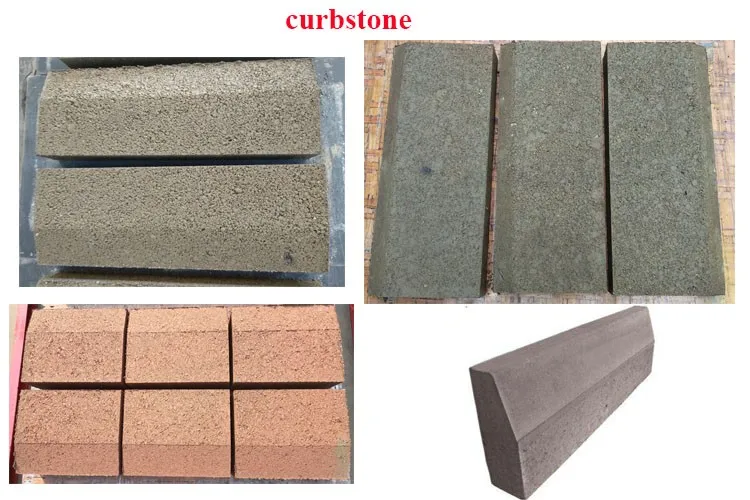

Curb stone 400*350*150mm |
|
3 |
360 |
2880 |
07 |
Houdri blocks 500*150*200 |
|
5 |
600 |
4800 |

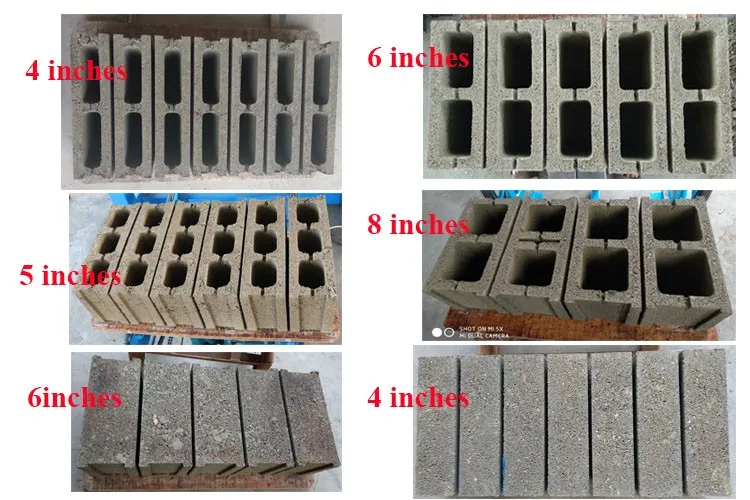

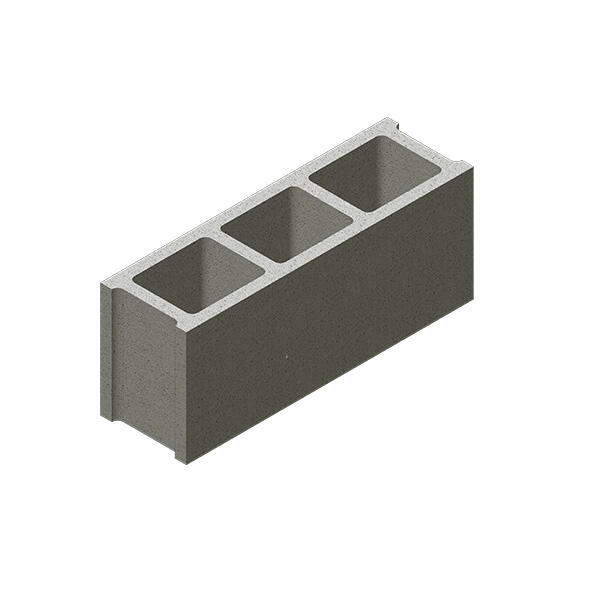

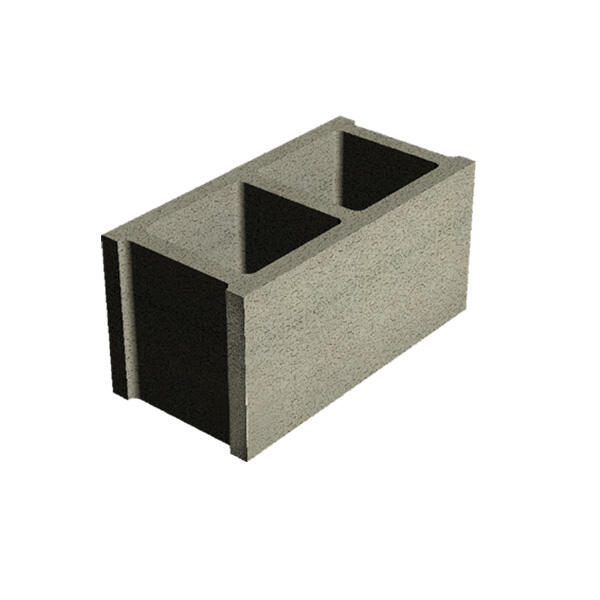

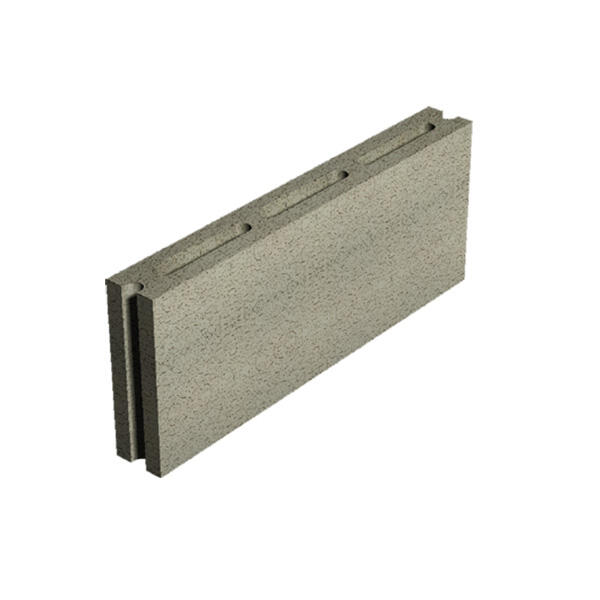

Different types of blocks produce by our
QTJ4-30A cement block making machine
